How to Install a Patio Misting System:
Patio Mister Installation Step 1
Ensure all nozzles and connections are installed Step 3
Attaching your Patio Misting Tube - Step 2
The Patio Misting System arrives to your door. This is a complete patio misting system kit. Everything you need is here. Get started with your layout and placement of the pump.
Attaching your Patio Misting Tube - Step 2
Ensure all nozzles and connections are installed Step 3
Attaching your Patio Misting Tube - Step 2
This step of your patio misting system installation is simple and straightforward. Attach your patio misting system tubing to the perimeter of your deck, overhang, pergola or where ever you want mist.
Ensure all nozzles and connections are installed Step 3
Ensure all nozzles and connections are installed Step 3
Ensure all nozzles and connections are installed Step 3
Here you want to make sure all of the nozzles and connections of your patio misting system are installed correctly and free of any leaks. Get your tubing to run back to the spot where you are placing your misting system pump.
Hook your pump to power and water - Step 4
Ensure all nozzles and connections are installed Step 3
Ensure all nozzles and connections are installed Step 3
Place your patio misting system pump in your desired area. Typically on the side of the house, near pool equipment, by HVAC units or really anywhere. Plug it into an existing outlet and attach to a hose. Use of extension cords or longer garden hoses can allow for perfect placement.
Patio Misting System FAQs
How many feet can The Patio Misting System handle?
How many nozzles can I add to The Patio Misting System?
How many nozzles can I add to The Patio Misting System?
This is our most common question. The answer has some nuance, but generally speaking, The Patio Misting System handles almost every sized patio. Click below to see the page that details how many feet it cools.
How many nozzles can I add to The Patio Misting System?
How many nozzles can I add to The Patio Misting System?
How many nozzles can I add to The Patio Misting System?

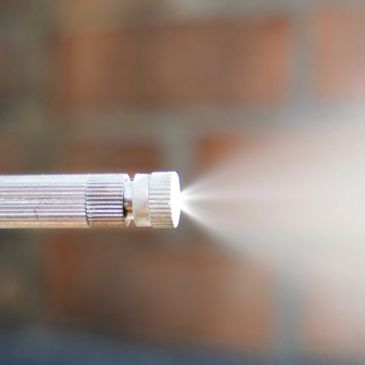

Simply put, it depends on the nozzle size. There is not a set specific number of nozzles, but generally you can get about 40 nozzles on a system by mixing and matching nozzle sizes. Click Below for a detailed explanation.
Will the Patio Misting System fit my patio size?
Will The Patio Misting System work for my patio height?
Will The Patio Misting System work for my patio height?
Yes, The Patio Misting System will fit practically any size patio. The modular design allows you to custom fit each component to any structure.
Click below for a more detailed explanation.
Will The Patio Misting System work for my patio height?
Will The Patio Misting System work for my patio height?
Will The Patio Misting System work for my patio height?
Simply put, it depends on the nozzle size. There is not a set specific number of nozzles, but generally you can get about 40 nozzles on a system by mixing and matching nozzle sizes. Click Below for a detailed explanation.
How to space the nozzles for The Patio Misting System?
How to space the nozzles for The Patio Misting System?
How to space the nozzles for The Patio Misting System?
Nozzle spacing is very important to create a perfect mist around your entire space. You don't want to space the nozzles too far apart, or too close together. The best part about The Patio Misting System is you get to choose!
Will The Patio Misting System work for my patio shape?
How to space the nozzles for The Patio Misting System?
How to space the nozzles for The Patio Misting System?
Yes, The Patio Misting System is designed to fit almost any shape patio you can dream up. With The Patio Misting Systems modular components, you can custom fit your entire system to any design.
Where can I place my Patio Misting System pump?
This one is easy because there are endless places to place the pump. Side of the house, by pool equipment, HVAC condensers, or virtually anywhere you want to put it.
Patio Misting System Installation Instructions
See step by step Patio Misting System Installation instructions at the link below. This will give you an idea of how simple the installation of a Patio Misting System is.
Step-by-step Patio Misting System Installation Instructions.
#1. Preparing for Installation & Measuring
When installing a patio misting system, there is a bit of prep work that needs to be done. This includes gathering the tools and materials necessary to complete the installation, such as the misting system and all of its accessories, a drill with drill bits, and measuring tape.
From there, you can then begin to measure the area where you are installing your patio misting system and plan your layout. While planning the layout, you must ensure that the mist tubing is installed where you want it to help cool. You must also ensure your system has access to power and water for the misting pump.
Once you have considered each of these factors, measured the area where you will be installing the system, and created a plan for the installation, you can begin installing your misting system from The Patio Misting System.
#2. Anchor Misting System Tubing to Structure

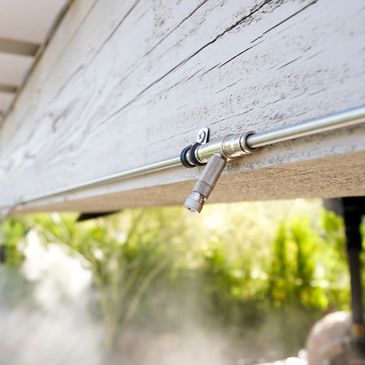

The installation process begins with attaching the misting system tubing to a structure – whether it is a wall, ceiling, or other type of existing structure. Regardless of which type of tubing you are installing, Stainless steel mist tube or black flexible misting tubing, the process is the same. Utilize your drill as well as the screws, anchors, and clamps included with our misting system to attach the tubing to your structure.
During this step, ensure the spots for the nozzles are facing outwards – away from the structure – and toward the area you intend to cool. You will need to get screws specific for installation type. Wood screws, stucco/concrete screws, or self tapping metal screws are all common options.
#3. Attach Nozzles & Connect Nylon Tubing
Once your misting system tubing is securely attached to a structure, you may then attach the nozzles that come with each patio mister from The Patio Misting System. Ensure that the nozzles are facing outward and securely – but not overly tightly – attached to the installed tubing. Leave one nozzle toward the end of the system unattached. (It will be attached later – after flushing the system.)
From there you can connect the nylon tubing – that will eventually attach to the misting system pump – to the stainless steel or black flexible tubing installed on the structure. Be sure that the connection is secure and will not leak water.
#4. Set Up the Misting System Pump

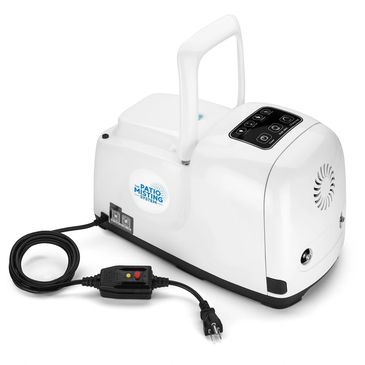

The next step is to set up The Patio Misting System pump. First, attach the nylon tubing to the pump using the included water outlet metal connector, ensuring that it is tightly secured to prevent water leaks. Then, connect your misting system pump to a water spigot or hose, which will supply the water needed to create an inviting, cooling mist.
This is a good time make sure you have added 80ML of oil to your patio misting system pump. These instructions are best visualized in The Patio Misting System Installation video HERE.
Once both are connected to the misting system pump, you can then plug your pump into a power source. From there, you can simply switch the system on, and if installed correctly so far, it will be good to go!
#5. Flush the Misting System & Conduct Inspection
Before finishing up, it is important to flush the system to help ensure its cleanliness and conduct an inspection to ensure everything is operating properly.
As noted in step #3, one nozzle was left off of the tubing attached to your structure. Once you turn the system on, water should run through all of the tubing and out of the space where that nozzle is missing. Allow the water to run through the system for a few minutes to ensure any dust or dirt is purged from the tubing. Then, turn the system off and attach the final nozzle.
From there, you will want to run the system again and conduct your inspection. Visually inspect each section of the system to ensure there are no leaks, the nozzles are facing the right direction, and the mist is covering the area you want it to help cool. If pressure is escaping anywhere a connection is not tight, the entire system will no work. The entire system needs to be air tight allowing pressure to only escape at each nozzle.
After your inspection is complete and you have made any necessary adjustments, your misting system will be ready to provide you with the cooling and comfort you have anticipated!
The Patio Misting System Installation Manual
How do I install The Patio Misting System? Simple! This DIY Patio Misting System is so easy to install, the average person can do it within about 2 hours.
On this step of installation of your patio misting system make sure you have everything needed. Ladder, drill, screwdriver, screws and plumbers tape.
Installing your Patio Misting System can be completed in about 2 hours. Make sure you lay out your overall path of the system and map it back to where you are going to place your pump.
The Patio Misting System is completely customizable. Using the modular components you can follow along any structure or space you want your misters. This process is simple and unique to The Patio Misting System's installation.
Fine tuning your patio misting system during installation. This is where you want to make sure you do not have any leaks and can fine tune the pressure using the internal pressure knob.
One your have your Patio Misting System installed, you can now enjoy the amazing cooling comfort for years to come. There are some simple maintanece items that you can do to ensure a longer life of your system.
